HHD202

HALLMARK HOSPITAL DOORS

Hallmark Reduced Swing

Double Action Doorset

This is the double action version of our standard Reduced Swing doorset. It pivots both ways, making it ideal for patients in wheelchairs or walking frames to open the door from either side with ease. It allows push or pull action from either side, offering the least resistance and optimum ease of use.

TRIM SIZE

CALCULATORS

DATA SHEET

PRINTABLE PDF

HF30D Fire Door data sheet.pdf

INSTALLATION

Select Frame & Wall Type

Timber Frame - Timber Stud

Timber Frame - Steel Stud

Timber Frame - Masonry

Timber Frame - Gib

Steel Frame - Timber Stud

Steel Frame - Steel Stud

Steel Frame - Masonry

Steel Frame - Gib

Featuring an innovative bi-directional hinge, the HHD202 reduced swing door concertinas in on itself, reducing swing arc by a third of that of a standard door.

Double or single action door

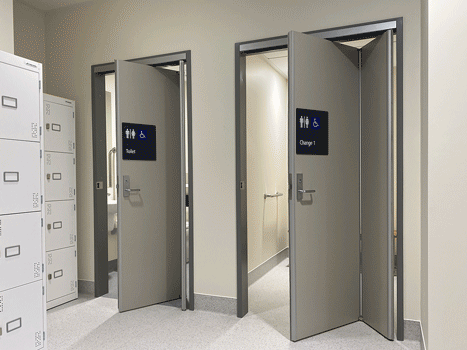

Reduced-Swing-Double-Action-Animation.gi

The above shows DOUBLE action doorsets. These are also available as single action - see spec HHD201 for single action details.

FEATURES

Two panel articulated door
Door swing follows an elliptical curve, reducing door swing by one-third of conventional doors

Fits a standard door frame
Wall space is not compromised. Reduced door swing uses less floor space - perfect for constrained space

Locally designed and manufactured
Designed and manufactured in NZ specifically for NZ requirements

Non-Trap Operating Gear Design
Unlike other reduced swing door options available in the NZ market, the Hallmark double action reduced-swing doorset utilises non-trap operating gear, meaning no large gaps are created by the door pivot, significantly reducing trap-risk.

SPECIFICATIONS

Clear opening
